The PPG hardware delay and the adopted pulse arrival time¶
VitalDB's raw ECG→PPG pulse arrival time is about 0.4 s longer than physiology. Splitting it into a hardware delay (one value for the release; One device delay for the PLETH across the release) and a physiological part needs an adopted value from studies that sampled ECG and PPG on one clock: about 270 ms for anaesthetised adults.
| Date | 2026-10-12 |
| Status | current |
| Methods | Delays and averaging windows, Reading the source |
| Clocks | Pulse oximeter frame clock |
| Devices | Solar8000 monitor, SNUADC |
| Variables | Plethysmogram (SNUADC), ECG lead II (SNUADC) |
Background¶

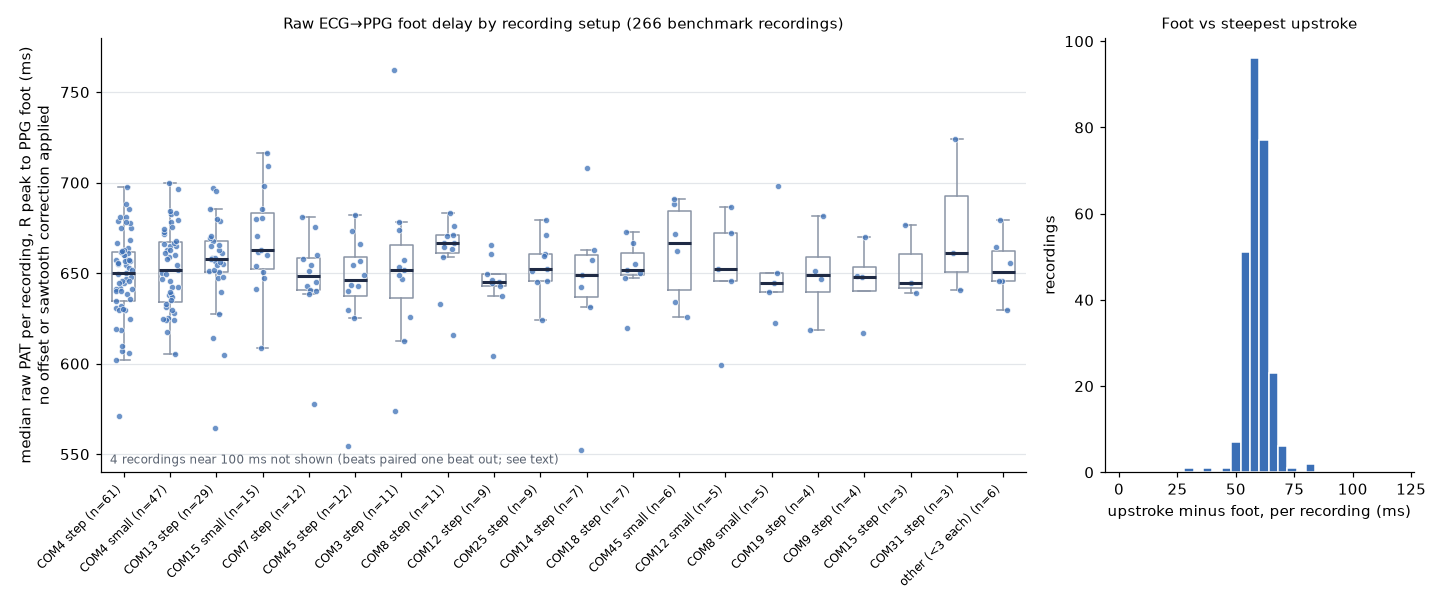

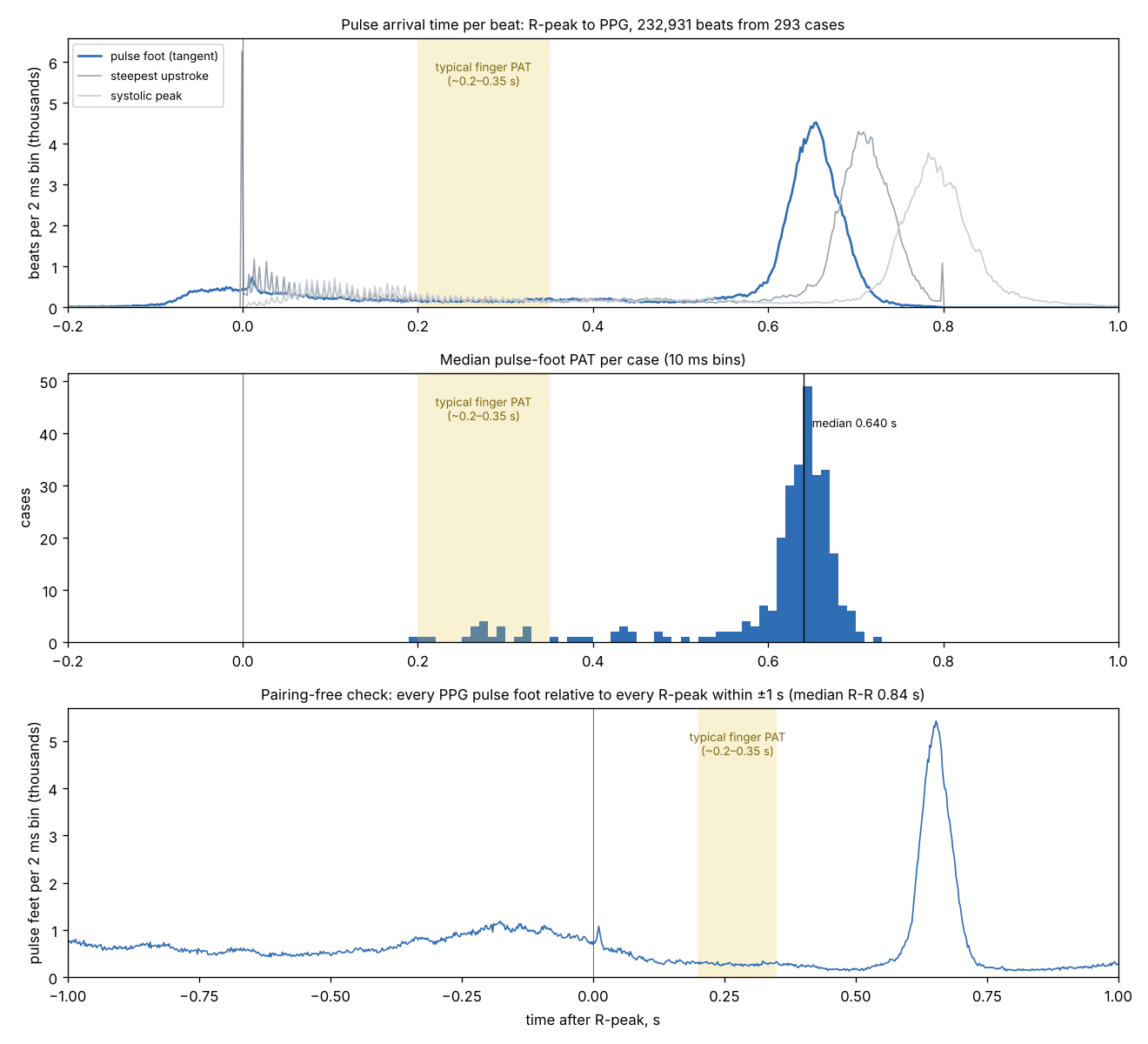

The median R-to-PPG-foot time in VitalDB is 0.64 s, against roughly 0.2–0.3 s in adults measured with shared-clock hardware; an earlier VitalDB study found 645 ± 26 ms. The excess is the monitor's buffering and filtering, and it cannot be separated from physiology inside VitalDB.
Data¶
232,931 beats in 293 cases (raw PAT); published shared-clock studies of awake adults.
Method¶
Literature graded by how ECG and PPG were clocked: A (one acquisition unit), B (research equipment, shared clock likely), C (clinical monitor, excluded). Adults with an R-peak ECG fiducial and finger PPG foot.
Results¶
- Tier A studies put R-to-finger-foot PAT at about 200–285 ms in awake adults; none gives a verifiable shared-clock value under anaesthesia.
- Anaesthesia lengthens PAT by about 40 ms in monitor-based work (240 ms before induction, 279–284 ms after).
- For VitalDB (adults under general anaesthesia, mean age about 58): about 270 ms, plausible range 250–290 ms.
- Hardware delay with that value: about 385 ms over these 293 cases (to the PPG foot). Per-setup values of 368–399 ms were reported here first; the full census (One device delay for the PLETH across the release, 5,536 recordings) found no difference between setups beyond ±15 ms and the same value, 385 ms (655 ms to the foot minus 270 ms), so one global delay is used. The adopted value and the delay must use the same fiducial: 270 ms is to the foot.
| Parameter | Value | Status | From |
|---|---|---|---|
| Adopted mean pulse arrival time | 270 ms (plausible range 250–290 ms) | assumed | The PPG hardware delay and the adopted pulse arrival time |
Discussion¶
The adopted value must use the same PPG point the software detects. The global delay is taken at the foot, where the 270 ms applies; a PAT timed to the steepest upstroke comes about 60 ms later, and that difference stays in the corrected value (Pulse arrival time in two correction steps). Since the census, one delay serves every recording, so a change to the adopted value moves every recording's level by the same amount.
Observations it supports¶
| Observation | Status | Summary |
|---|---|---|
| The PLETH arrives about 0.4 s late | established | Raw R-to-PPG-foot pulse arrival time in VitalDB has a median of 0.64–0.71 s, about 0.4 s more than physiology: the monitor's buffering and filtering. One delay fits the whole release: no clusters by setup, SNUADC port or case order (One device delay for the PLETH across the release). |
| The plethysmogram is built in 30 Hz frames | established | The SNUADC PLETH waveform comes from the oximeter in 33.3 ms frames, smoothed to 500 Hz. Its content changes once per frame, on the oximeter's own clock, about 0.4 s after the finger. |
Limitations¶
The hardware delay is not observable in VitalDB; it rests on the adopted physiological value.
Worked examples¶
| Example | Side | Status | Summary |
|---|---|---|---|
| Pulse arrival time against blood pressure, before and after synchronisation | time | draft | In 3,270 recordings, PAT tracks systolic pressure only once each pulse is paired with its own beat: the hourly correlation moves from a mean of −0.04 to −0.21 (88% of recordings negative), reproducing Ruffolo et al. 2025 in a second dataset; paired naively, PAT is a heart-rate signal. |
| Pulse arrival time in two correction steps | time | draft | The time from the ECG R wave to the pulse at the finger, as stored, after the PLETH's sawtooth is removed, and after its device offset is removed, smoothed by maximum likelihood, with the arterial line as the reference. |
